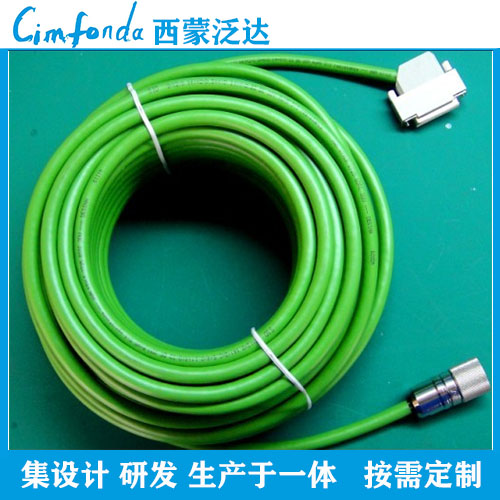

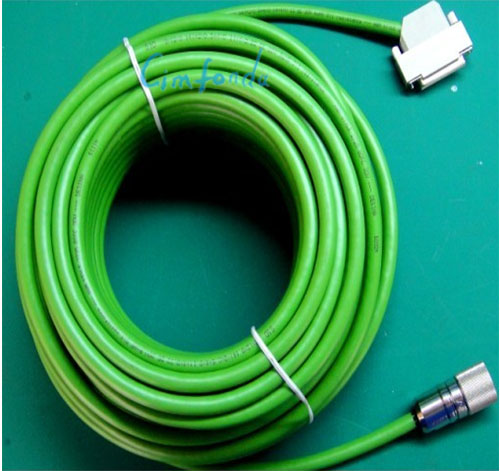

机器人线束数据电缆
电缆结构
导体：0.5mm²-0.75mm²:裸铜多股线,裸铜多股线符合
IEC60228+EN60228,VDE0295,6级
绝缘：ETFE氟素树脂
颜色：0.5mm²-0.75mm²:符合颜色代码
带有连续编号的黑色芯线符合EN50334,
芯线结构：每层均经过特殊处理,并包有无纺带
护套：高温耐油性特制PV符合DIN DE0281+HD21.1
额定电压：0.5mm²-0.75mm²:U0/U 300/300V
峰值电压：00.5mm²-0.75mm²:U 3000V
测试电压：0.5mm²-0.75mm²:1500V符合DIN VDE0472
抗辐射强度：5×10^7cJ/kg
扭转角度：达±270℃/0.5m
使用温度范围：UL(0.10mm²-0.75mm²)DIN VDE
规格 | 导体规格 (根数/直径) | 近似密度公斤/KM | 标称外径/下限mm | 外径上限mm | |
0.14*2C | 28/0.08CU+2/0.1steel | 25.9 | 4.4 | 4.8 | |
0.14*3C | 28/0.08CU+2/0.1steel | 31.3 | 4.6 | 5.0 | |
0.14*4C | 28/0.08CU+2/0.1steel | 38.2 | 5.0 | 5.4 | |
0.14*5C | 28/0.08CU+2/0.1steel | 44.8 | 5.4 | 5.8 | |
0.14*6C | 28/0.08CU+2/0.1steel | 51.7 | 5.8 | 6.2 | |
0.14*7C | 28/0.08CU+2/0.1steel | 58.6 | 6.2 | 6.6 | |
0.14*8C | 28/0.08CU+2/0.1steel | 66.7 | 6.7 | 7.1 | |
0.14*9C | 28/0.08CU+2/0.1steel | 73.9 | 7.1 | 7.5 | |
0.14*10C | 28/0.08CU+2/0.1steel | 80.8 | 7.4 | 7.8 | |
0.14*11C | 28/0.08CU+2/0.1steel | 92.3 | 8.3 | 8.7 | |
0.14*12C | 28/0.08CU+2/0.1steel | 96.6 | 8.3 | 8.7 | |
0.14*13C | 28/0.08CU+2/0.1steel | 100.8 | 8.3 | 8.7 | |
0.14*14C | 28/0.08CU+2/0.1steel | 111.8 | 9.0 | 9.8 | |
0.14*15C | 28/0.08CU+2/0.1steel | 116 | 9.0 | 9.8 | |
0.14*16C | 28/0.08CU+2/0.1steel | 120.4 | 9.0 | 9.8 | |
0.14*17C | 28/0.08CU+2/0.1steel | 132 | 9.8 | 10.6 | |
0.14*18C | 28/0.08CU+2/0.1steel | 136.2 | 9.8 | 10.6 | |
0.14*19C | 28/0.08CU+2/0.1steel | 140.5 | 9.8 | 10.6 | |
0.14*20C | 28/0.08CU+2/0.1steel | 145.4 | 9.9 | 10.7 | |
0.14*21C | 28/0.08CU+2/0.1steel | 149.6 | 9.9 | 10.7 | |
0.14*22C | 28/0.08CU+2/0.1steel | 153.8 | 9.9 | 10.7 | |
0.14*23C | 28/0.08CU+2/0.1steel | 167 | 10.7 | 11.7 | |
0.14*24C | 28/0.08CU+2/0.1steel | 171.3 | 10.7 | 11.7 | |
0.2*5C | 40/0.08CU+2/0.1steel | 49.91 | 5.7 | 6.2 | |
0.2*6C | 40/0.08CU+2/0.1steel | 57.73 | 6.1 | 6.6 | |
0.2*7C | 40/0.08CU+2/0.1steel | 65.66 | 6.5 | 7.0 | |
0.2*8C | 40/0.08CU+2/0.1steel | 74.77 | 7.1 | 7.6 | |
0.2*9C | 40/0.08CU+2/0.1steel | 82.98 | 7.5 | 8.0 | |
0.2*10C | 40/0.08CU+2/0.1steel | 90.86 | 7.9 | 8.4 | |
0.2*11C | 40/0.08CU+2/0.1steel | 103.83 | 8.8 | 9.6 | |
0.2*12C | 40/0.08CU+2/0.1steel | 108.81 | 8.8 | 9.6 | |
0.2*13C | 40/0.08CU+2/0.1steel | 113.79 | 8.8 | 9.6 | |
0.2*14C | 40/0.08CU+2/0.1steel | 126.14 | 9.6 | 10.5 | |
0.2*15C | 40/0.08CU+2/0.1steel | 131.12 | 9.6 | 10.5 | |
0.2*16C | 40/0.08CU+2/0.1steel | 136.25 | 9.7 | 10.5 | |
0.2*17C | 40/0.08CU+2/0.1steel | 149.29 | 10.5 | 11.4 | |
0.2*18C | 40/0.08CU+2/0.1steel | 154.27 | 10.5 | 11.4 | |
0.2*19C | 40/0.08CU+2/0.1steel | 159.26 | 10.5 | 11.4 | |
0.2*20C | 40/0.08CU+2/0.1steel | 164.97 | 10.6 | 11.5 | |
0.2*21C | 40/0.08CU+2/0.1steel | 169.95 | 10.6 | 11.5 | |
0.2*22C | 40/0.08CU+2/0.1steel | 174.94 | 10.6 | 11.5 | |
0.2*23C | 40/0.08CU+2/0.1steel | 189.75 | 11.5 | 12.5 | |
0.2*24C | 40/0.08CU+2/0.1steel | 194.73 | 11.5 | 12.5 | |
0.25*2C | 50 | 0.08 | 29.73 | 4.9 | 5.3 |
0.25*3C | 50 | 0.08 | 36.47 | 5.1 | 5.5 |
0.25*4C | 50 | 0.08 | 44.18 | 5.5 | 5.9 |
0.25*5C | 50 | 0.08 | 52.22 | 5.9 | 6.3 |
0.25*6C | 50 | 0.08 | 60.5 | 6.3 | 6.8 |
0.25*7C | 50 | 0.08 | 68.9 | 6.7 | 7.2 |
0.25*8C | 50 | 0.08 | 78.46 | 7.3 | 7.8 |
0.25*9C | 50 | 0.08 | 87.14 | 7.8 | 8.3 |
0.25*10C | 50 | 0.08 | 95.48 | 8.1 | 8.7 |
0.25*11C | 50 | 0.08 | 108.91 | 9.1 | 9.9 |
0.25*12C | 50 | 0.08 | 114.35 | 9.1 | 9.9 |
0.25*13C | 50 | 0.08 | 119.8 | 9.1 | 9.9 |
0.25*14C | 50 | 0.08 | 132.6 | 10.0 | 11.0 |
0.25*15C | 50 | 0.08 | 138.05 | 10.0 | 11.0 |
0.25*16C | 50 | 0.08 | 143.64 | 10.0 | 11.0 |
0.25*17C | 50 | 0.08 | 157.14 | 10.9 | 11.9 |
0.25*18C | 50 | 0.08 | 162.59 | 10.9 | 11.9 |
0.25*19C | 50 | 0.08 | 168.03 | 10.9 | 11.9 |
0.25*20C | 50 | 0.08 | 174.21 | 10.9 | 11.9 |
0.3*2C | 60 | 0.08 | 33.13 | 5.0 | 5.5 |
0.3*3C | 60 | 0.08 | 40.95 | 5.2 | 5.7 |
0.3*4C | 60 | 0.08 | 49.87 | 5.6 | 6.1 |
0.3*5C | 60 | 0.08 | 59.16 | 6.0 | 6.5 |
0.3*6C | 60 | 0.08 | 68.74 | 6.5 | 7.0 |
0.3*7C | 60 | 0.08 | 78.46 | 6.9 | 7.4 |
0.3*8C | 60 | 0.08 | 89.51 | 7.5 | 8.0 |
0.3*9C | 60 | 0.08 | 99.55 | 8.0 | 8.6 |
0.3*10C | 60 | 0.08 | 109.22 | 8.4 | 9.0 |
0.3*11C | 60 | 0.08 | 124.72 | 9.4 | 10.0 |
0.3*12C | 60 | 0.08 | 131.08 | 9.4 | 10.0 |
0.3*13C | 60 | 0.08 | 137.45 | 9.4 | 10.0 |
0.3*14C | 60 | 0.08 | 152.26 | 10.3 | 11.1 |
0.3*15C | 60 | 0.08 | 158.62 | 10.3 | 11.1 |
0.3*16C | 60 | 0.08 | 167.66 | 10.3 | 11.1 |
0.3*17C | 60 | 0.08 | 180.79 | 11.2 | 12.1 |
0.3*18C | 60 | 0.08 | 187.15 | 11.2 | 12.1 |
0.3*19C | 60 | 0.08 | 193.52 | 11.2 | 12.1 |
0.3*20C | 60 | 0.08 | 200.72 | 11.3 | 12.2 |
0.34*2C | 68 | 0.08 | 33.8 | 5.2 | 5.5 |
0.34*3C | 68 | 0.08 | 42 | 5.5 | 5.8 |
0.34*4C | 68 | 0.08 | 53.3 | 6.1 | 6.4 |
0.34*5C | 68 | 0.08 | 60.8 | 6.4 | 6.7 |
0.34*6C | 68 | 0.08 | 70.8 | 6.9 | 7.2 |
0.34*7C | 68 | 0.08 | 80.8 | 7.4 | 7.7 |
0.34*8C | 68 | 0.08 | 92.2 | 8.0 | 8.3 |
0.34*9C | 68 | 0.08 | 102.6 | 8.5 | 8.8 |
0.34*10C | 68 | 0.08 | 112.6 | 9.0 | 9.3 |
0.34*11C | 68 | 0.08 | 128.4 | 10.1 | 10.7 |
0.34*12C | 68 | 0.08 | 135.1 | 10.1 | 10.7 |
0.34*13C | 68 | 0.08 | 141.8 | 10.1 | 10.7 |
0.34*14C | 68 | 0.08 | 157 | 11.1 | 11.7 |
0.34*15C | 68 | 0.08 | 163.7 | 11.1 | 11.7 |
0.34*16C | 68 | 0.08 | 173 | 11.1 | 11.7 |
0.34*17C | 68 | 0.08 | 186.5 | 12.1 | 12.7 |
0.34*18C | 68 | 0.08 | 193.2 | 12.1 | 12.7 |
0.34*19C | 68 | 0.08 | 199.9 | 12.1 | 12.7 |
0.34*20C | 68 | 0.08 | 207.5 | 12.2 | 12.8 |
